SBOX-2625-SF

Intel® Twin Lake Processor N150 Ultra-Compact Embedded Computer

• Ready for high-speed DDR5 4800 memory, up to 16 GB capacity
• 9–36V Wide DC Input with OCP, OVP, Surge and Reversed Polarity Protection

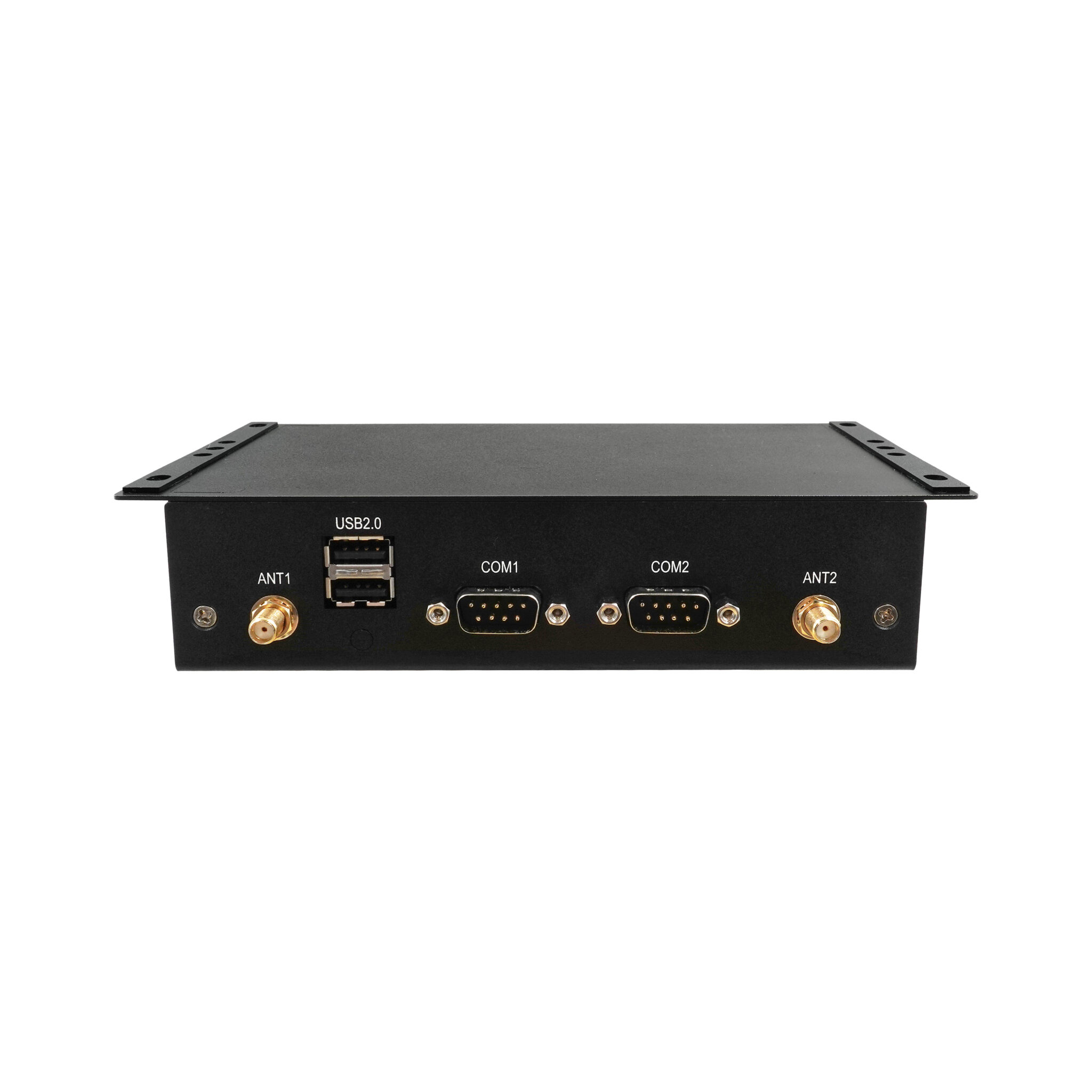

• Up to 6 x USB Ports and 3 x COM Ports for Retail and Industrial Applications

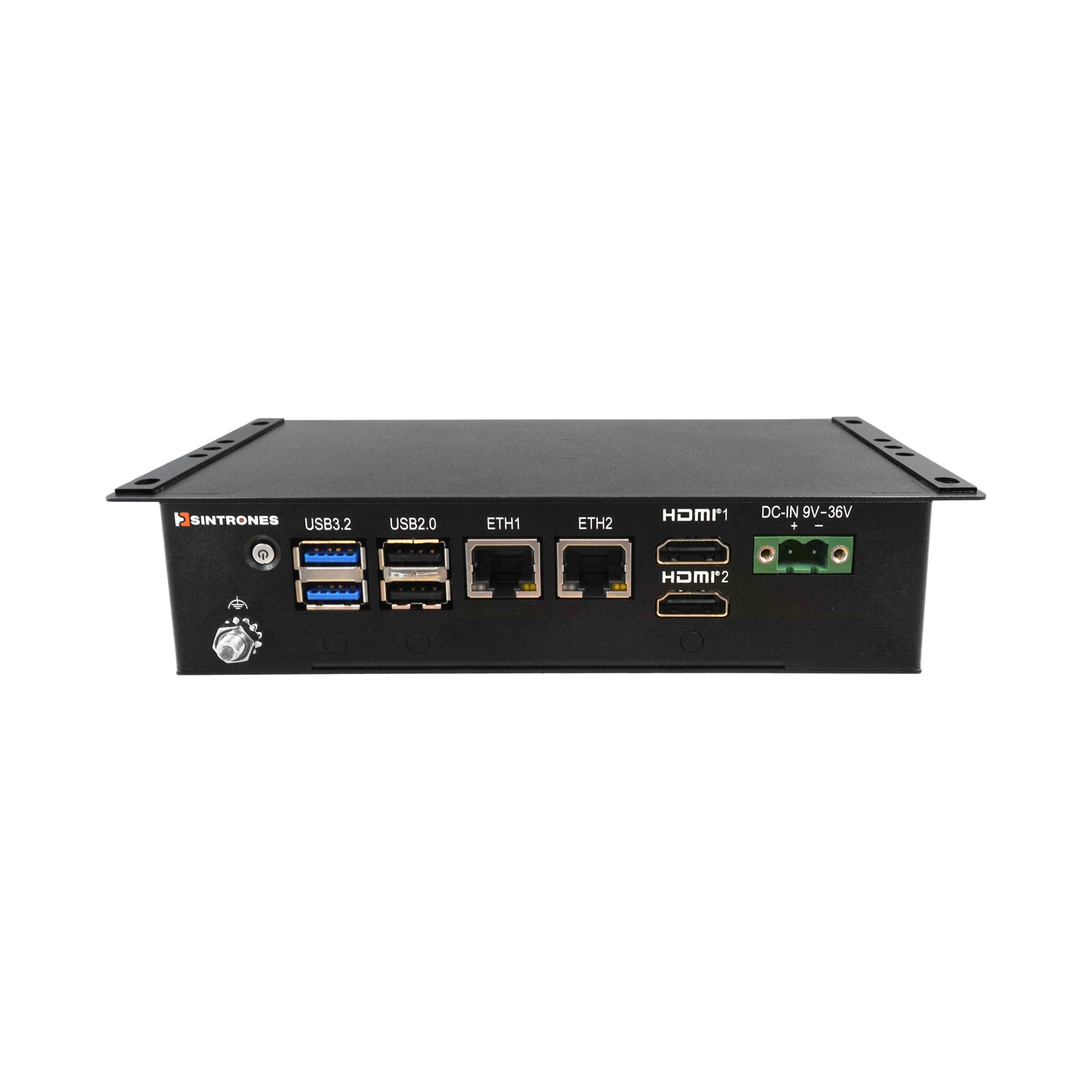

• 2 x Intel 2.5Gb Ethernet for High-Bandwidth Uplink and Downlink Connection

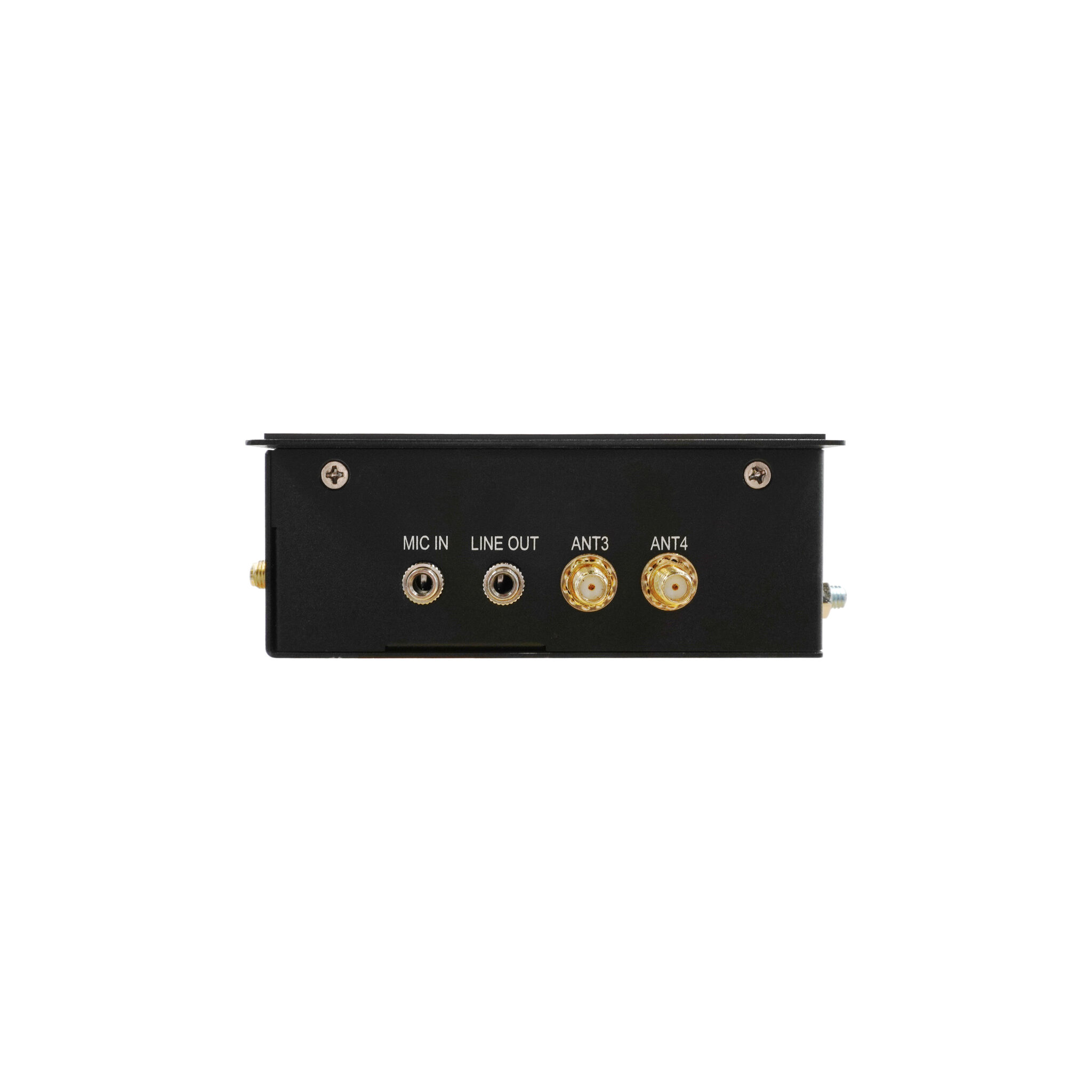

• Expandable Wireless Connectivity via M.2: Wi-Fi, 5G, and LTE Module
• Support TPM 2.0 to Enhance System Security and Safeguard Critical Data
• Ultra-Compact Fanless Computer for Limited Space Deployment

Product Status:
SINTRONES Icons_CE SINTRONES Icons_FCC 100SINTRONES Icons_Wide voltage SINTRONES Icons_Wide temperature SINTRONES Icons_Fanless
線上詢價 Datasheet

Ultra-Slim Embedded Computing with Flat-Surface Heat Transfer

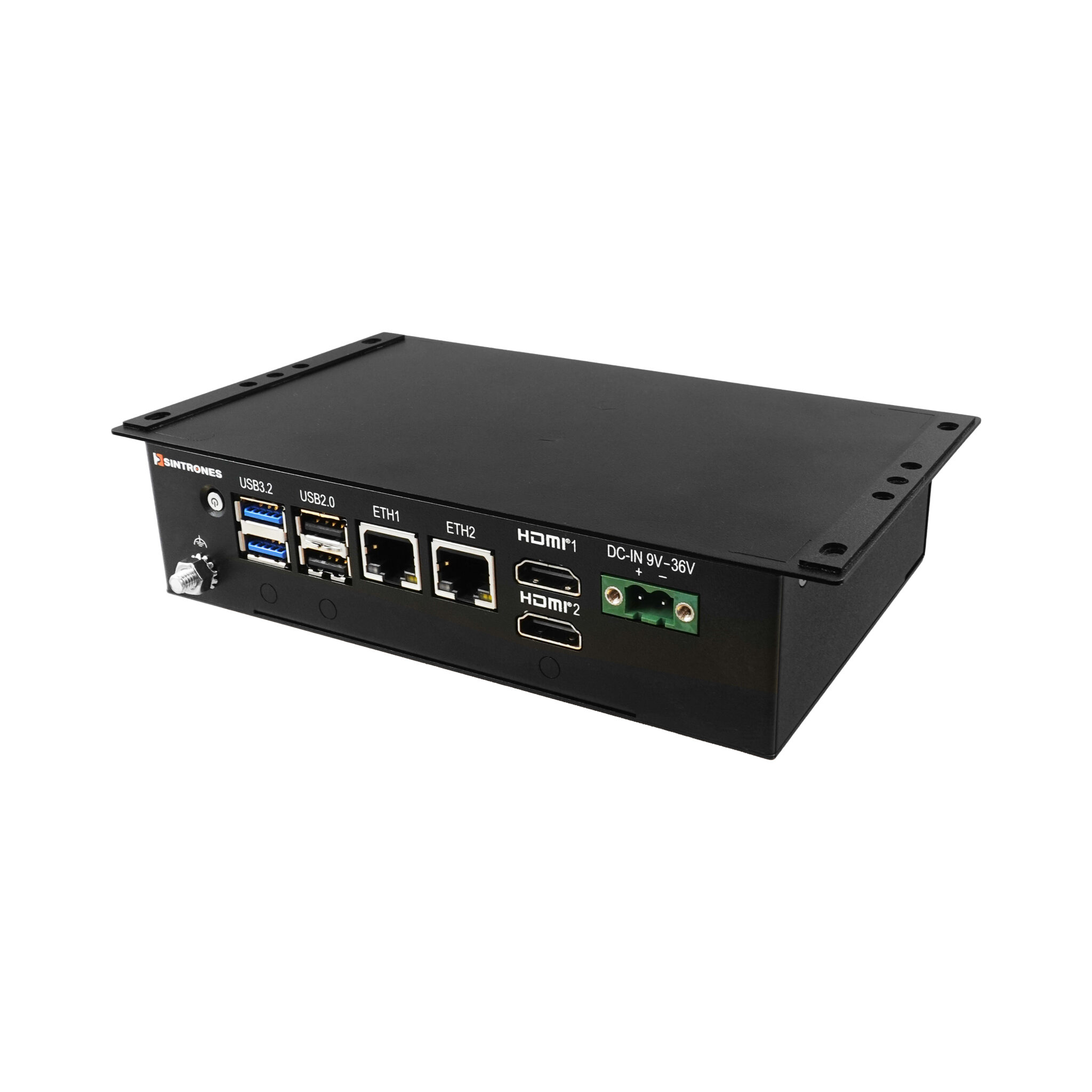

The SBOX-2625-SF is a fanless embedded computer built for industrial cabinets and equipment enclosures with limited installation space. Measuring 182 × 106 × 40 mm and weighing approximately 720 g, its slim steel enclosure provides greater flexibility in cabinet layout.

Its flat surface transfers heat through a thermal interface material (TIM) to the cabinet’s metal panel, allowing the cabinet to serve as a heat spreader. This design reduces the space required for conventional cooling fins.

Powered by the quad-core Intel® Processor N150 with a 6W processor TDP, the system accommodates up to 16 GB of DDR5-4800 memory. Dual 2.5GbE, configurable USB and COM connectivity, optional wireless expansion, TPM 2.0, and protected 9–36V DC input provide a versatile foundation for embedded deployments.

Flexible Integration for Factory Automation, Retail, and Surveillance

In factory automation, the SBOX-2625-SF connects industrial equipment and peripherals inside compact control cabinets. Its slim profile leaves more room for surrounding components, while flat-surface heat transfer integrates thermal management into the cabinet design.

For retail systems, USB and serial interfaces connect peripherals, while dual HDMI outputs enable display integration. In smart surveillance installations, dual 2.5GbE ports provide network connectivity and SATA SSD options accommodate local storage. Optional Wi-Fi and 5G/LTE modules extend deployment flexibility where wired connections are limited.

Enabling Real-Time Edge AI Across Diverse Industries

Edge AI is transforming how industries collect, analyze, and act on data in real time. By processing AI workloads directly where data is generated, organizations can reduce latency, improve operational efficiency, and enable faster decision-making without relying on cloud connectivity. From industrial automation and machine vision to autonomous mobility and intelligent transportation, SINTRONES rugged Edge AI computing platforms deliver the performance, reliability, and scalability required for mission-critical deployments. Discover how Edge AI is driving innovation across diverse industries and empowering businesses to bring AI closer to where it creates the greatest impact.

Technical FAQ

Q1: What should I check before installing the system in a cabinet?

Allow space for the computer, connectors, cable routing, and maintenance access. Also check that the cabinet provides a suitable metal contact surface for heat transfer through TIM.

Q2: Can I leave an air gap between the flat thermal surface and the cabinet panel?

An air gap interrupts the intended conductive heat-transfer path. The mating surfaces should make consistent contact through TIM.

Q3: Does the −30°C to 60°C rating apply to a cabinet without airflow?

The published rating was tested with 0.6 m/s airflow and a 300 × 300 × 5 mm aluminum heat spreader. An installation without airflow requires thermal validation under its actual workload and mounting conditions.

Q4: How can I use cellular connectivity and local storage together?

Install the WWAN module in the M.2 Key B slot and use a 2.5-inch SATA SSD. The Key B combo slot accepts either a WWAN module or an M.2 SATA SSD.

Q5: How do I select the right USB and COM configuration?

List the required port counts and serial protocols before selecting a model. Up to six USB ports and up to three COM ports are available across configurations; confirm the combination required for your peripherals.
